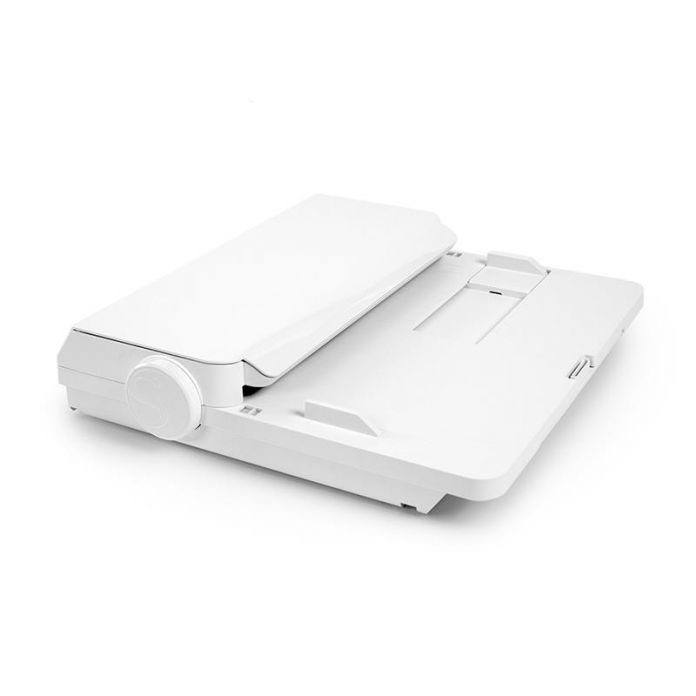

Auto Sheet Feeder - A3 Plus

SHEET-FEEDER-A3PLUS

The Auto Sheet Feeder A3 Plus streamlines the bulk cutting process by automatically loading sheet materials into your Silhouette cutting machine. Simply load up to 20 sheets of material into the top tray, set the number of copies to cut in Silhouette Studio®, and the Auto Sheet Feeder will load each sheet into the machine and eject it below the loading tray for a smooth, matless cutting experience. You can cut the same design multiple times or send different cut jobs at once using barcodes.

Compatible with:
Silhouette Cameo 5 Plus
Silhouette Cameo Pro MK-II

For more information on compatibility, please refer to the tools compatibility chart.

If you're using the 12‑inch or smaller model, please use the Auto Sheet Feeder - Letter.

Weight:
3 Kg(s)
UPC:
819177025477
  • Sheet Feeder
  • Power Divider Cable
  • Positioning Base
  • Safety Sheet
  • Compatible Media Sizes:
  • A3: 29.7 cm x 42.0 cm (11.7 in. x 16.5 in.)
  • 30.5 cm x 30.5 cm (12 in. x 12 in.)
  • A4: 21.0 cm x 29.7 cm (8.27 in. x 11.7 in.)
  • Letter: 21.6 cm x 27.9 cm (8.5 in. x 11 in.)
  • Compatible Media Types: Sticker paper, photo paper, and other rigid sheet materials. (Curled or electrostatically charged media may not be used)
  • Compatible Media Thickness: 0.18mm~0.26mm
  • Maximum Material Capacity: 20* / ≤ 4.4mm (*Maximum capacity varies by media thickness.)
  • Interface: USB 2.0 high speed (no Bluetooth® compatibility)
  • Unit Dimensions: 40.1 cm x 36.8 cm x 8.4 cm (15.28 in. x 14.5 in. x 3.3 in.)
  • Unit Weight: 1.96 kg (4.3 lbs)
  • Shipping Dimensions: 46.0 cm x 40.2 cm x 13.2 cm (18.1 in. x 15.83 in. x 5.2 in.)
  • Shipping Weight: 2.7 kg (6.0 lbs)
  • Requires Silhouette Studio® software version 4.5.117 or higher
